产品介绍
特 点：
■ 2路电唱输入，2路线路输入，1路话筒输入。
■ 话筒优先控制。
■ 横跨直滑电位器。
■ Dj话筒增益控制。
■ 监听控制。
■ MASTER、REC、PHONES输出。
|

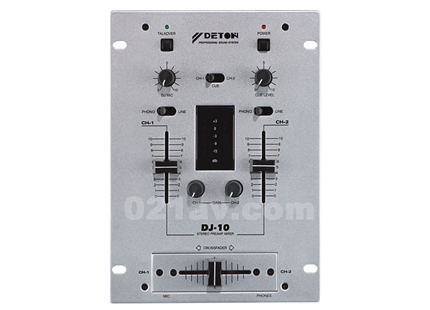

MODEL |
DJ-10 |
|
Gain-Trim |
20dB |
|
Normal Input Level Output: 750mV (Dj14 output 1.22V) |
1.1mV(±2dB)/4k ohms (Mic) 2mV(±2dB)/50k ohms (phono) 300mV(±2dB)/50k ohms (line) |
|
Maximum Input Level Input: 1kHz Output Distortion 1% |
Mic: 50mV Phono: 150mV Line: 3V |
|
Normal Outoput |
Master: 750mV Rec: 600mV Phono: 300mV (50 ohms Load Dis. 1%) |
|
Frequency Response |
Mic: 20Hz-20kHz(±3dB) Phono: 20Hz-20kHz(±3dB) Line: 20Hz-20kHz(±3dB) |
|
Signal/Noise Ratio (w/HF A Filter,odB: 775mV Noise: input Short) |
Residual out: -90dB (All fader at Min.) Mic: -65dB (Mic/Master VR Fader at Max) Phono: -56dB (Phono/MasterVR Fader at Max) Line: -70dB (Line/Master VR Fader at Max) |
|
Overall Noise (All Fader at Max.) |
4.5mV |
|
T.H.D. |
+4dB Output: 0.3%(Mic 1kHz) 0.1%(Phono 1kHz) 0.05%(Line 1kHz) |
|
Talkover |
-14dB (at 1kz) |
|
LED Display Output |
750mv (At 0dB position) |
|
EQ Control |
|
|
Dimensions(WXDXH) |
230X165X75 mm |
|
Weight |
1.5 Kg |
