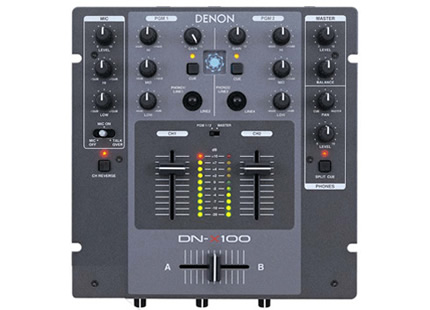

天龙2路DJ混音台 DENON　DN-X100

SPECIFICATIONS
GENERAL
Dimensions:
220(W)×85.9(H)×226(D)mm
8.7(W)×3.4(H)×8.9(D)mm
Weight:3.8kg,8 3/8lbs.
Power supply:AC120V±10%,60Hz
Power sourse:10VAC,750mA×2

AUDIO SECTION
Input Level & Impedance:
2-Line                               -14dBV(200mV)20KΩ/kohms
2-Phono                           -50dBV(3.0mV)50KΩ/kohms
Effect(Return)                   -14dBV(200mV)20KΩ/kohms
Mic                                    -54dBV(2.0mV)2KΩ/kohms
Output level & Impedance:
Balanced                           4dBm(1.23V)150Ω/ohms
Unbalanced                       0dBV(1.0V)1kΩ/kohms
Effect(Send)                      -14dBV(200mV)1kΩ/kohms
Headphone                       0dBV(1.0V)33Ω/ohms
Frequency Response:
Line                                   20 to 20 kHz±2dB
Phono                                20 to 20 kHz RIAA±2dB
Mic                                     20 to 20 kHz±3dB
Signal to Noise ratio:
Line                                   85dB
Phono                                76dB
Mic                                     66dB
Total harmonic distortion rate:
Line                                   Below0.05%
Phono                                Below0.07%
Cross talk                          Over75dB
Channel equalizer:
Hi                                      -30~+10dB(16kHz)
                                         -38~+10dB(20kHz)
Mid                                    -38~+10dB(1kHz)
Low                                   -38~+6dB(60kHz)
Microphone equalizer:
Hi                                       -12~+12dB(10kHz)
Low                                   -12~+12dB(100Hz)
