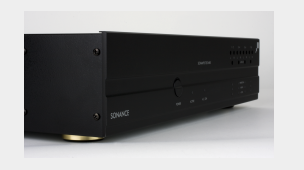

The Sonamp 875D MKII utilizes four highly-ef?cient Bang & Olufsen ICEpower® digital ampli?ers that provide 65 watts RMS per channel @ 8 ohms x 8 Channels in a 2U high package with very little heat generation. The Sonamp 875D MKII incorporates BBE sound enhancement, improving the sound quality of your music at lower listening levels. BBE also restores clarity and de?nition to spoken voices, which makes paging systems easier to understand without having to run them at high volumes.
Multiple audio input connections (Direct, L/R & Aux) and buffered line outputs make your 875D MKII extremely ? exible, so you can connect the ampli?er in a variety of ways depending on your particular system’s con?guration. Recessed front-panel controls are tamper-resistant and let you adjust each channel’s input level and each zone’s auto-on sensitivity. The 875D MKII’s RS-232 connection lets you use a variety of third-party serial control systems to control almost all of the 875D MKII’s functions, including mute, volume, on/off and BBE per zone or for the whole amp. It also lets you monitor the ampli?er’s operation from a remote location. Each zone has its own 12V input and output triggers and defeatable auto-on signal sensing that help maximize power management for the channel con?guration in use at any time.Specifications
-
Number of channels：
-
8 (four stereo pairs)
-
Power Output：
-
65 watts RMS per channel (X8) @ 8 ohms
120 watts per channel (X8) @ 4 ohms
-
>Power Output (Bridged)：
-
250 watts per channel (X4) @ 8 ohms
-
Frequency Response：
-
20Hz – 20kHz, ±1dB (hi-pass filter OFF); -3dB @ 27Hz (hi-pass filter ON)
-
Total Harmonic Distortion：
-
0.10% (1kHz, 8 ohms)
0.25% (1kHz, 4 ohms)
-
Signal to Noise Ratio：
-
-96dB (w/22kHz A-WTG filter)
-
Input Sensitivity：
-
1.0V for 65W RMS @ 8 ohms
850 mV w/BBE ON (+3dB)
650 mV w/BBE ON (+6dB)
-
Input Impedance：
-
10k ohms
-
Max Source Input Voltage：
-
4.0 VAC RMS
3.0V AC RMS w/BBE ON
-
Loop Output Impedance (Buffered)：
-
100 ohms
-
Serial Protocol (RS-232 Connection)：
-
9600 Baud, N, 8, 1, single CR
-
Power Consumption：
-
1,200 watts maximum (4 ohms, full power)
-
AC Fuse (120V Version)：
-
10A (T10AL ~ 250V)
-
6AC Fuse (230V Version)：
-
6.3A (T6.3AL ~ 250V)
-
6Heat Output：
-
288 BTU/hour (8 ohms, rock music); 553 BTU/hour (4ohms, rock music)
-
Dimensions (WxHxD)：
-
16 1/2” x 3 1/2” x 17 1/4”
(419mm x 98mm x 438mm)
-
Dimensions w/ Rack Ears (W x H x D)：
-
19” x 3 1/2” x 17 1/4”
(483mm x 98mm x 438mm)
-
Rack Space Requirements：
-
2U (rack-mount ears included)
-
Shipping Weight：
-
24 lbs (10.9kg)
-
