力卡UHF无线麦克风 Relacart RE-5000/RE5000H


上海视听网--Relacart无线话筒系列产品:力卡UHF无线麦克风 Relacart RE-5000/RE5000H

产品介绍

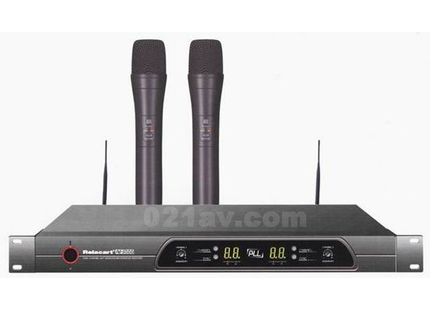

RE-5000双通道单接收接收机
RE-5000H手持式麦克风

    RE-5000系统是一款适合专业舞台演唱用的无线麦克风系统,采用众多高新技术设计于一身:超高频段(UHF)传输,双频道单接收,数码指示,红外线对频,CPU控制,PLL锁相环技术,杂讯检测等,且有32个可调频点,易于操作的优点。
    RE-5000 is good for professional stage, adopting new high technology,with 32 frequencies,dual channels,frequency selection of IR, CPU control and PLL phase Locked Loop system.

Techniacl Specifications
■ Main Frame Size(机箱规格):ELA standard 1-rack unit
■ Channels(频道组数):Dual channel
■ Carrier Frequency Range(载波频段):UHF 500~560MHz
■ Modulation Mode(调制方式):FM
■ Oscillation(振荡方式):PLL synthesized
■ Sensitivity(灵敏度):在偏移度等于25KHz, 输入6dBμV时S/N>60dB
■ Max. Deviation Range(蕞大偏移度):±45KHz(supply compressing and extending function, and auto volume limited circuit)
■ Band width(频带宽度):20MHz
■ 综合S/N比:>95dB
■ 综合T.H.D.:<1.1%@1KHz
■ Frequency response(综合频率响应):50Hz~18KHz±3dB,include low-frequency fade filter circuit
■ Max.output voltage(蕞大输出电压):balanced MIC-LEVEL:-20dBV/100Ω,
                                                          Unbalanced LINE-LEVEL:-4dBV/5KΩ

■ Output jack(输出插座):XLR balanced& 6.3φunbalanced jack
■ AC power supply(AC电源供应):built-in 220V AC exchanging supplier
■ Dimension(尺寸)(m/m):480(L)×198(H) ×44(W)


Handle Style Transmit MIC
RE-5000H手持式发射话筒

■ Carrier Frequency Range(载波频段):UHF500~560MHz
■ Oscillation(振荡模式):PLL synthesized
■ Carrier Frequency Power(载波功率):3mW
■ Harmonic radiation(谐波辐射):<-63dBm
■ Max. Deviation Range(蕞大偏移度):±45KHz
■ Microphone Head(音头) :Condenser and dynamic(optional)
■ Battery Type(使用电池):two 1.5V batteries
■ Current consumption(电流消耗):<110mA
■ Dimension(尺寸)(m/m):36Φ×260(L)

RE-5000T腰包式发射器
Body-Pack Transmitter
■ Carrier Frequency Range(载波频段):UHF500~560MHz
■ Oscillation(振荡模式):PLL synthesized
■ Carrier Frequency Power(载波功率):3mW
■ Harmonic radiation(谐波辐射):<-63dBm
■ Max. Deviation Range(蕞大偏移度):±45KHz
■ Input Jack(输入插座):3-pin mini XLR jack
■ Microphone Head(音头):Condenser
■ Battery Type(使用电池):two 1.5V batteries
■ Current consumption(电流消耗):<110mA

产品价格

  • 市场价:请电话咨询
    批发价:请电话咨询
    会员价:请电话咨询

关于力卡Relacart

“Relacart力卡”主营品牌系列产品:各类音频会议系统,有线无线麦克风,他们核心业务是为集成商、工程商等合作伙伴提供会议室完整解决方案,为渠道经销商提供专业娱乐器材设备的渠道销售服务。

广州力卡电子有限公司创建于1994年,是集研发、生产、销售为一体的专业音响器材设备制造企业。拥有现代化厂房、先进的流水生产线、齐全的精密检测设备,构建有完善的质量保证体系,公司及产品先后通过ISO9001:2000国际质量体系认证,中国国家强制性产品3C认证。

Relacart is the company founded in 1994 by Professionals who wanted to make difference to things done before. Relacart aims at bringing things of future technology for today. Relacart is dedicated in designing, manufacturing, marketing and distribution professional audio products. We have started from Microphone, Conference System and Mixer. Now we are doing production of Digital wireless Microphone, Digital Wireless Conference System, Tour Guide System, Public Address System, Etc. We have full equipped sound test lab to provide you all type of Test and Repots. We have most advance equipments to produce Hi- end products. We are using German SMT process automatic plant in production. We have Q.C department to keep a close eye on all production line. Each products will go through Q.C Test before go for final packing. We have all advanced testing equipment such as Signal Emitter; network Analyzer, Spectrum Analyzer, Radio communications test sets, Audio Analyzer, Audi Exam System & etc.
