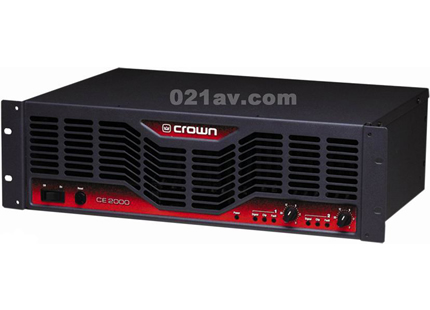

CE Series amplifiers are professional tools designed and built for professional use. Engineered and manufactured by the same teams who built the acclaimed Macro-Tech and K Series amps, the CE2000 has the rugged heart and soul that has characterized Crown amplifiers for over 30 years. You'll find front panel detented level controls, useful function indicators, proportional fan-assisted cooling, short circuit protection and more.
Minimum Guaranteed Power |
CE 2000 |
120 VAC, 60 Hz Units, Stereo mode, per channel, both channels driven |
|
1 kHz with < 0.5% THD |
|
2 ohms
4 ohms
8 ohms |
975 W
660 W
400 W |
120 VAC, 60 Hz Units, Bridge mono mode |
|
1 kHz with 0.1% THD |
|
4 ohms
8 ohms |
1,950 W
1,320 W |
Performance |
CE 2000 |
Frequency Response (at 1 watt, 20Hz - 25 kHz) |
± 0.2 dB |
Phase Response (at 1 watt, 20Hz - 20 kHz) |
± 15° |
Signal to Noise Ratio below rated power (20 Hz to 20 kHz) |
> 100 dB |
Total Harmonic Distortion (THD) at rated power, from 20 Hz to 20 kHz |
0.5% |
Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1,
from 163 milliwatts to full bandwidth power |
< 0.1% |
Damping Factor: 10 Hz to 400 Hz |
> 400 |
Crosstalk (below rated power, 20 Hz to 20 kHz) |
> 55 dB |
Common Mode Rejection (CMR) (20 Hz to 1 kHz) |
> 70 dB |
DC Output Offset (Shorted input) |
±10 mV |
Input Impedance nominally balanced, nominally unbalanced |
20 k ohms, 10 k ohms
|
Load Impedance (Note: safe with all types of loads) |
|
Stereo
Bridge Mono |
2, 4 and 8 ohms
4 and 8 ohms |
Voltage Gain (at maximum level setting, to 1-kHz, 8-ohm rated output) |
|
26 dB setting
1.4V setting |
26 dB
32.1 dB |
Required AC Mains (configured country-specific) |
50/60 Hz, 100 - 240 VAC |
Power Draw at Idle |
90 watts |
Cooling |
Proportional speed fan |
Dimensions: Width, Height, Depth |
EIA Standard 19 in. (48.3 cm) x 5.25 in. (13.34 cm) x 12.25 in. (31.11 cm) |
Net Weight, Shipping Weight |
40.3 lb (18.28 kg), 46.4 lb (20.98 kg |
