力卡调音台 Relacart X2422/ X1622


上海视听网--Relacart调音台系列产品:力卡调音台    Relacart    X2422/ X1622

产品介绍

X2422  24路调音台

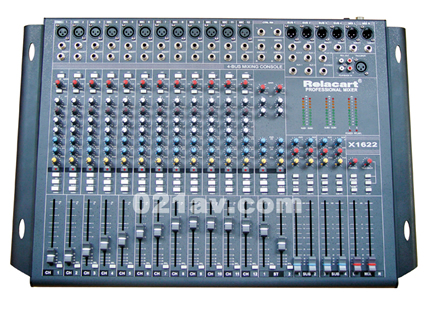

X1622  16路调音台

X系列4编组调音台适用于多媒体礼堂、会议室、酒店、夜总会、公共广播、录音室等场所。
X Series 4-Bus Mixer is suitable in multifunctional hall、conference room、hall、hotel、disco room、public broadcasting、radio and so on.
主要性能和特点:
■ 12/20路单通道,2路立体声输入
■ 电路板采用双面SMT贴片技术,使性能稳定可靠
■ 采用100mm ALPS衰减器
■ 每一通道都有断点输入,能灵活接入不同的信号处理设备
■ 独特的选听设计能够独自监听到每一通道的电平
■ 3频段均衡器,MF频段的范围是从140Hz到3KHz
■ 每通道独立+48V幻像电源供电
■ 每一通道都有100Hz低切开关
■ 4路辅助输出,4路编组输出

features
■ 12/20 mono,2 stereo input
■ Double layer PCB with SMT ensures the reliability
■ Adopt ALPS 100mm fader
■ Each channel with INSERT input
■ Special SOLO design can monitor each channel level separately
■ Professional +48V phantom power for condenser microphone
■ 3 band EQ , MF sweeping from 140Hz to 3KHz
■ Each channel with phantom power switch
■ Each channel with 100Hz low cut switch
■ 4 AUX output ,4-bus output

Technical Specifications
Gain(增益):Maximum Voltage Gain(MIC)
           蕞大电动势增益(麦克风):≥80dB
           Maximum Voltage Gain(LINE)
           蕞大电动势增益(线路):≥50dB

Equivalent input noise(等效输入噪声):≤-134dBm
Residual Noise(剩余噪声):≤-90dBm

Frequency response(频率响应):
Gain limited frequency response
(增益限制频率响应):20Hz~20KHz(+1,-3dB)

Input Impedance(输入阻抗):
MIC(麦克风):≥2KΩ
LINE(线路):≥11KΩ

Gain Control(增益控制)
Mono(单通道):≥-49dB~0dB
Stereo(双通道):≥-24dB~0dB

Output Impedance(输出阻抗):≤75Ω

Tone speciality(音调特性):
Low(低):60Hz±15dB
Mid(中):3KHz±15dB
High(高):12KHz±15dB

Max Earphone Output Level
(蕞大耳机输出电平):≥290mW

Max Monitor Output Level
(蕞大监听输出电平):≥15dBm

Maximum Input Level(蕞大输入电平):
Mic(麦克风):≥-30dBm
Line(线路):≥-10dBm

Max SUB Output Level(编组蕞大输出电平):≥17dBm

Weight(重量):(X2422)13.8kg

产品价格

  • 市场价:请电话咨询
    批发价:请电话咨询
    会员价:请电话咨询

关于力卡Relacart

“Relacart力卡”主营品牌系列产品:各类音频会议系统,有线无线麦克风,他们核心业务是为集成商、工程商等合作伙伴提供会议室完整解决方案,为渠道经销商提供专业娱乐器材设备的渠道销售服务。

广州力卡电子有限公司创建于1994年,是集研发、生产、销售为一体的专业音响器材设备制造企业。拥有现代化厂房、先进的流水生产线、齐全的精密检测设备,构建有完善的质量保证体系,公司及产品先后通过ISO9001:2000国际质量体系认证,中国国家强制性产品3C认证。

Relacart is the company founded in 1994 by Professionals who wanted to make difference to things done before. Relacart aims at bringing things of future technology for today. Relacart is dedicated in designing, manufacturing, marketing and distribution professional audio products. We have started from Microphone, Conference System and Mixer. Now we are doing production of Digital wireless Microphone, Digital Wireless Conference System, Tour Guide System, Public Address System, Etc. We have full equipped sound test lab to provide you all type of Test and Repots. We have most advance equipments to produce Hi- end products. We are using German SMT process automatic plant in production. We have Q.C department to keep a close eye on all production line. Each products will go through Q.C Test before go for final packing. We have all advanced testing equipment such as Signal Emitter; network Analyzer, Spectrum Analyzer, Radio communications test sets, Audio Analyzer, Audi Exam System & etc.
