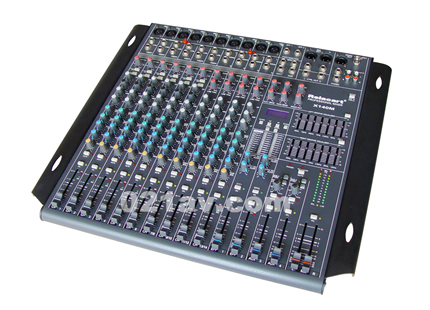

力卡带均衡或效果器调音台 Relacart X140M

X140M  14路调音台
X140M无编组调音台有如下优点：时尚的外观，小巧的设计，功能齐全。适用于录音室、会议厅、学校广播室等场所。

主要性能和特点:
■ 六路单通道输入和四路立体声输入，配高质量话筒放大器
■ 每个输入通道拥有独立信号指示器及峰值指示器保证了电平的有效调节
■ 采用长寿命60mm推子
■ 每路单声道都带插入点，能灵活的接入不同的处理设备;并没有80Hz的高通滤波器、100Hz到2K的人声滤波器
■ 每路双声道的MIC与LINE输入拥有独立的增益控制器
■ 每个声道输入都配有独听，静音开关
■ 分段+48V幻像电源供应电容咪
■ 精密3段EQ，中频带100Hz8KHz频点扫描，便于对人声范围内的控制
■ 内置两个24-Bit,32种DSP效果器，并能重叠成一个1024种DSP效果器
■ 双七段图示均衡
■ 高精度双色LED电平柱，准确控制输出电平
■ 备有话筒监听输出功能配备录音输出
■ 四个辅助发送，其中3、4带PRE/POST选择并拥有一个能在（100）Hz到20KHz可调的频率陷波器
■ 2TR立体声输入，分别能返送到AUX3、4;MIX L/R
■ 平衡式的MIX OUT输出端，在转输信号时有效地抑制外来干扰
■ MONO混合信号输出，带PRE/POST选择开关
■ 12V鹅颈式灯设计的BNC接口

features
■ 6 mono and 4 stereo input
■ Each input channel has separate signal and peak value indicator to adjust of level well
■ 60mm fader
■ Each mono input to connect with different processor,80Hz high pass filter, 100Hz to 2k sound pass filter
■ Either MIC or LINE input in each dual channel has separate gain controller
■ Each track input has separate monitor and mute switch
■ +48V phantom power for condenser microphone
■ 3-band EQ ,100Hz8KHz scan
■ Built-in 24-bit,32kinds of DSP,and orerlap 1024 kinds of DSP
■ Dual 7-band graphic equalizer
■ Colour LED display to control output level exactly
■ MIC monitor output with sound recording output
■ 4 AUX transmitting,PRE/POST in band 3,4 with a 100Hz-20KHz frequency wave trap
■ 2TR stereo input to transmit to AUX3、4;MIX L/R separately
■ Balance MIX OUT output can restrain signal interference
■ MONO mix signal output,with PRE/POST selecting switch
■ 12V gooseneck BNC connector

technical specifications
Max Electromotive Force Gain(蕞大电动势增益)：≥74dB
Max Line Gain(蕞大线路增益)：≥55dB
Equivalent Input Noise(等效输入噪声源电动势)：≤-122dBm
Residual noise(剩余噪声输出电压)：≤-80dBm
Frequency Response(频率响应)：20Hz~20KHz±0.5dB
THD+N(总谐波失真)：≤0.05%
Grossfalk(通道间串音衰减)：≤-60dB(10KHz)
Gain inequality(通道间增益差)：≤0.5dB
Phase difference(通道间相位差)：≤0.1°
Input Impedance(输入阻抗)
LINE Input(线路输入)：10KΩ
Microphone input(话筒输入)：1.8KΩ
Input Over Loading Electromotive Force(输入过载源电动势)：16dBm
Output Impedance(输出源阻抗)：≤75Ω
Max Output Level(输出蕞大电平)：20dBm
Total Power Consumption(整机功耗)：≤35W
