X122 12路调音台

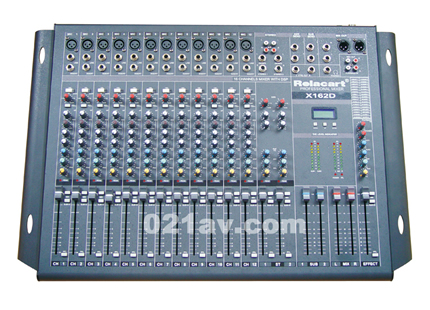

X162 16路调音台
X系列2编组调音台适用于多媒体礼堂、会议室、酒店、夜总会、公共广播、录音室等场所。
X Series 2-Bus Mixer is suitable in multifunctional hall、conference room、hall、hotel、disco room、public broadcasting、radio and so on.
主要性能和特点:
■ 8/12路单通道，2路立体声输入
■ 电路板采用双面SMT贴片技术，使性能稳定可靠
■ 采用100mm ALPS衰减器
■ 每一通道都有断点输入，能灵活接入不同的信号处理设备
■ 独特的选听设计能够独自监听到每一通道的电平
■ 3频段均衡器，MF频段的范围是从140Hz到3KHz
■ 每通道独立+48V幻像电源供电
■ 每一通道都有幻像电源开关
■ 每一通道都有100Hz低切开关
Features
■ 8/20 mono,2 stereo input
■ Double layer PCB with SMT ensures the reliability
■ Adopt ALPS 100mm fader
■ Each channel with INSERT input
■ Special SOLO design can monitor each channel level separately
■ Professional +48V phantom power for condenser microphone
■ 3 band EQ , MF sweeping from 140Hz to 3KHz
■ Portable style mixer
■ Each channel with phantom power switch
■ Each channel with 100Hz low cut switch
Technical specifications
Maximum Output Level(蕞大输出电平)：17dBm(1kHz,THD=0.5%)
Residual Noise(剩余噪声)：-78dB
S/N(信噪比)：-80dB
Equivalent Input Noise(等效输入噪声)：-129dBm
THD+N(总谐波失真)：≤0.2%(1KHz,0.775V)
Headphone Output Power(头戴耳机输出功率)：300mw(1KHz,THD=0.5%,200Ω)
Equalization(均衡器)：
Low(低)：60Hz±15dB
Mid(中)：140KHz~3KHz±15dB
High(高)：12KHz±15dB
Gain Control(增益控制)：
Mono(单通道)：-48dB~0dB
Stereo(双通道)：-25dB ~0dB
Frequency Response(频率响应)：20Hz~20KHz(+1dB,-3dB)
Maximum voltage gain(蕞大电动势增益)：
Mic To Mail(从麦克风到总通道)80dB
Mono Line To Main(单通道到总通道)63dB
Stereo Line To Main(双通道到总通道)25dB
Play To Main(录音输入到总通道)17dB
