AMX 双电源DXLink™控制器 PDXL-2


产品介绍

OVERVIEW

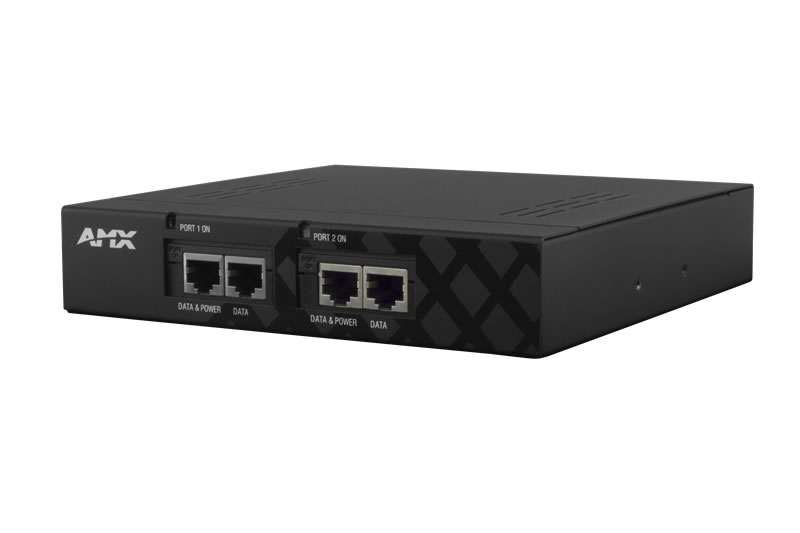

The PDXL-2 is a Power over DXLink injector which allows for remote powering of any two DXLink devices by "injecting" power through the twisted pair cable. The PDXL-2 also accepts I/O control from a NetLinx controller allowing power down capabilities to either (or both) of the connected DXLink devices to achieve power savings when they are not in use.
The PDXL-2 Dual Power over DXLINK Controller provides the ability to power a point-to-point DXLink Transmitter to DXLink Receiver without the need for an AC outlet in proximity to the location of the DXLink devices. When used with a NetLinx controller, the PDXL-2 can power down the DXLink devices as part of a standby mode for an entire room to reduce energy usage.


SPECIFICATIONS

DIMENSIONS (HWD)
1 7/16"×7" × 6 13/16" (36.3cm×177.8cm×172.4cm)

WEIGHT
2.25 lbs (1.02 kg)

    ACTIVE POWER REQUIREMENTS
  • Power Connector: (1) 100-240V, 50/60 Hz, 1.6 A
  • Power Consumption:
  • Maximum Current Draw: 1.0 A
  • Typical Current Draw: 0.35 A

*Note: Power consumption varies based on the number and type of powered devices

    ENVIRONMENTAL
  • Temperature (Operating): 32°to 104oF (0° to 40°C)
  • Temperature (Storage): –4° to 158°F (–20° to 70°C)
  • Humidity (Operating): 90%, Non-condensing (maximum)
  • Humidity (Storage): 95%, Non-condensing (maximum)
  • Operating Altitude: –1000 to 10,000 ft. (–304.8 to 3048m)
    DXLINK
  • DXLink Ports: (2) sets of 2 RJ-45 LAN connectors
  • Transport Layer Throughput: 10.2 Gbps pass thru
  • Power over DXLink Output: (per output)
  • Pin Assignment & Polarity 4/5 (+), 7/8 (–)
  • Output Power Voltage 55 VDC
  • Output Power 30 Watts (guaranteed)
    CONTROL
  • Relay Connection Type: (1) 4-pin 3.5 mm (female) captive-wire connectors
  • GND
  • Relay Port2
  • Relay Port1
  • +12V
  • Relay Description:
  • NetLinx Ports 1 & 2
  • Channels 1-2
  • Each relay can switch up to 24 VDC or 28 VAC @ 1 A
  • Each relay is independently controlled
  • Relays: 2

*Note: Connecting the PDXL-2 to the I/O port on the NetLinx Central Controller enables you to power off devices

    INDICATORS
  • (2) LEDs (1 for each DXLink Powered Output)
  • Yellow (On): power is on and active
  • Green (On): A remote terminal is connected
    GENERAL
  • Front Components
  • AC Power Indicator
  • Channel Power Indicator
  • Back Components
  • DXLink Ports
  • Power Connector
  • Certifications
  • FCC Part 15 Class A
  • CE EN 55022 Class A
  • CE EN 55024
  • CE EN 60950-1
  • IEC 60950-1
  • C-Tick CISPR 22 Class A
  • UL 60950-1
  • Mounting Options
  • Compatible with all V Style versatile mounting options including rack, surface or pole
  • Compatible AMX Products
  • DXLink HDMI Transmitter Module
  • DXLink Multi-Format Transmitter Module
  • DXLink Multi-Format Decor Style Wallplate Transmitters (US)
  • DXLink Multi-Format Wallplate Transmitters
  • DXLink HDMI Receiver Module
