产品说明及参数:

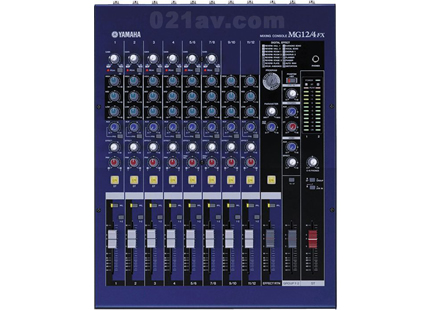

MG12/4FX 这一款带效果的调音台定位于小型工作室、安装工程与辅助混音。
MG12/4FX 带有最多12个混音通道，6个单声道的输入通道，分别带有三波段的EQ，以及最多四个立体声输入，分别带有三波段EQ。给设备还带有一个四个STEREO与GROP输出的总线结构，两个辅助/效果 发送/返回结构，以及内建的立体声SPX型效果器。单声道的通道输入有XLR型的麦克风接口，4个线性电平的非平衡TRS phone接口，立体声输入通道包括八个非平衡的phone与两对RCA接口。带有上机架的配件。
|
|
MG8/2FX |
MG12/4FX |
|
Total Harmonic Distortion |
Less than 0.1 % (THD+N) 20 Hz – 20 kHz @ +14 dBu (ST OUT) *3 |
|
Frequency Response |
-3, 0, +1 dB 20 Hz – 20 kHz @ +4 dBu (ST OUT) |
|
Input Hum & Noise*1 |
-128 dBu Equivalent Input Noise/-100 dBu Residual Output Noise, 20 Hz – 20 kHz, Rs=150 Ω, Input Gain=Maximum, Input sensitivity=-60 dB *3 |
|
Crosstalk |
-70dB @ 1kHz |
|
CH Input |
Mic |
4 (Ch 1 – 2, 3/4, 5/6: XLR) |
6 (Ch 1 – 4, 5/6, 7/8: XLR) |
|
Line |
2 (Ch 1 – 2: TRS:Phone) |
4 (Ch 1 – 4: TRS:Phone) |
|
Stereo |
2 (Ch 3 – 4, 5 – 6: TRS:Phone) * Ch3, 5: L (MONO)
1 (Ch 7 – 8: TRS:Phone/RCA:Pin) |
2 (Ch 5 – 6, 7 – 8: TRS:Phone) * Ch5, 7: L (MONO)
2 (Ch 9 – 10, 11 – 12: TRS:Phone/RCA:Pin) |
|
Insert I/O |
2 (Ch 1 – 2: TRS:Phone = T: Out, R: In, S: Gnd) |
4 (Ch 1 – 4: TRS:Phone = T: Out, R: In, S: Gnd) |
|
AUX |
Send |
1 (Effect / AUX) |
1 (Post-Pre selectable: TRS:Phone) |
|
Return |
1 Stereo (L/MONO, R: TRS:Phone) |
|
EFFECT |
Send |
(Same as AUX Send) |
1 (TRS:Phone) |
|
2TR |
In |
1 Stereo (L, R: RCA:Pin) |
|
REC |
Out |
1 Stereo (L, R: RCA) |
|
ST |
Out |
1 Stereo (L, R: TRS:Phone) |
2 Stereo (L, R: 2 TRS:Phone & 2 XLR) |
|
C/R |
Out |
1 Stereo (L, R: TRS:Phone) |
|
GROUP |
Out |
- |
2 (1, 2: TRS:Phone) |
|
Phones |
1 (TRS:Phone Stereo) |
|
Phantom Power |
+ 48 V |
|
CH & ST Ch Input Gain Control |
44 dB variable |
|
CH & ST High Pass Filter |
80 Hz 12 dB/Octave |
|
CH EQ (MONO)*2
±15 dB (Max.) |
High |
10 kHz (Shelving) |
|
Mid |
2.5 kHz (Peaking) |
|
Low |
100 Hz (Shelving) |
|
CH EQ (STEREO)*2
±15 dB (Max.) |
High |
10 kHz (Shelving) |
|
Hi-Mid |
- |
|
Mid |
2.5 kHz (Peaking) |
|
Low-Mid |
- |
|
Low |
100 Hz (Shelving) |
|
Graphic Equalizer |
- |
|
Internal Digital Effect |
16 Programs: Parameter Control |
|
Dimensions |
Width |
9.88 |
12.67 |
|
Depth |
11.41 |
16.40 |
|
Height |
2.55 |
4.25 |
|
Weight |
4.0 pds. |
11.02 pds. |
|
Power Requirements*4 |
20 W 120 V/60 Hz
20 W 220 V/50, 60 Hz
20 W 220 V/50, 60 Hz
20 W 240 V/50 Hz |
30 W 120 V/60 Hz
30 W 220 V/50, 60 Hz
30 W 220 V/50, 60 Hz
30 W 240 V/50 Hz |
