产品介绍

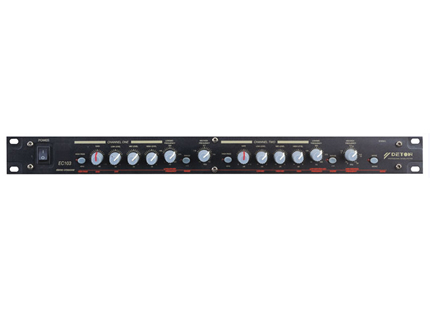

■stereo 3-way,mono 4-way(EC103).
■I/O connectors: 1/4 tip-ring-sleeve phone jack for balanced/unbalanced connections.
■THD+Noise:less than 0.006%.
■Sign-To-Noise Ratio:more than-90dB.
■Filter Type:18 dB/octave butterworth state-variable filters.
■Crossover frequencies-stereo:low/mid:50Hz to 5KHz in two ranges,mid/high:750Hz to 7.5KHz.
■Mono:low/low-mid:50Hz to 5KHz in two ranges,low-mid/high-mid:750Hz to 7.5KHz,high-mid/high:2KHz to 20KHz.
■Input impedance:20Kohms unbalanced,40Kohms bananced.
■Maximum input level:+21dBu(ref:0.775Vrms).
■Output impedance:102ohms.
■Maximum output level:+21dBu(ref:0.775Vrms).
