产品介绍

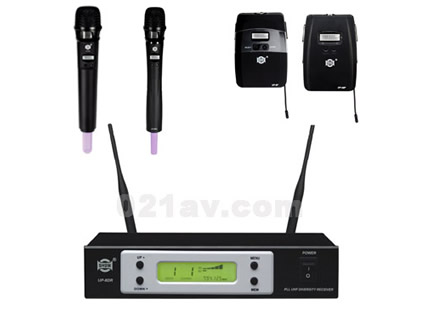

UP-8DR

GENERAL DESCRIPTION:
SHOW presents you its new PLL UHF wireless system, UP SERIES,
with 144 preset channels within 470~900 MHz depending on applicable
country regulation. This series also designed with lots of powerful
functions such as automatically scan/ lock preset ch, available using
16 multi-ch systems simultaneously and more than 100m working
distance...etc.

■ Front panel LCD displays:
1. RF/AF signal metering
2. Battery meter status.
■ Automaticlly SCAN and LOCK 128 perset channel simply by pushing the MEM button/ manual search for 144 preset channels.
■ 16 selectable preset frequencies can be used for multi-channel systems simultaneously.
■ Wide range of selectable presets can be set from 470~900MHz depends on applicable country regulations.
■ 100 m working distance without cutting off and dead space (without obstacle).

FEATURES:

MODEL	UP-8DR
Channel	Single-channel
Frequency band	UHF 470~900 MHz Dependent on applicable country regulations
Receiver type	PLL UHF SYNTHESIZED
Frequency response	50 Hz~15KHz (±3dB)
Frequency stability	±0.005% (-10°~ 50°c)
T.H.D .	<0.8%
Modulation mode	FM (F3E)
S / N Ratio	>90 dB
Dynamic	>100 dB
RF sensitivity	-100 dbm/ 30db sinad
Audio output	Unbalanced 6.3mm phone jack 550mV ±35KHz deviation
Balance output	250mV at ±35KHz deviation
Power supply	DC 12V/ 500mA (AC 115V/230V 50/60Hz Adaptor)
Dimensions	210(W)×156 (D)×44(H)mm; (8.2 x 6.1 x 1.7 )
Weight	Approx. 0.95kg (2.09 lb)

UP-83H (PLL UHF Dynamic Mic.; 470~900MHz; Omni-Directional)

GENERAL DESCRIPTION:

■ LCD displays: 1.Frequency
                            2.Channel
                            3.Battery meter status
■ Recharging outlet for optional rechargeable battery and charger.
■ 2 × AA batteries can be used continually 18 hours
■ 7 color plastic covers for mic. antenna
■ S-600 Dynamic capsule
■ Black color, rubber painting plastic

FEATURES:

UP-83H

■ Oscillation mode: PLL UHF SYNTHESIZED.
■ Carrier frequency band: UHF high band 470~900 MHz.
■ Frequency response: 50Hz~15KHz (±3dB).
■ Frequency stability: ±0.005% (-10??lt;/span>~50??lt;/span>).
■ T.H.D.: <0.8%.
■ Modulation mode: FM (F3E).
■ RF output power: 5~50mW. (Adustable 3 bands)
■ Dynamic: >100dB.
■ Tone frequency: 30~33KHz.
■ Current drain: 100mA.
■ Max. Deviation: ±35KHz Deviation.
■ Battery : AA type×2 pcs.
■ Optional: Nickel hydrogen Battery +battery charger.
■ Mic. capsule (Optional): S-600 Dynamic Capsule.
■ Dimensions: 277 mm (10.9).
■ Weight: Approx.0.2 kg. (0.44lb)

UP-883H (PLL UHF Dynamic Mic.; 470~900MHz; Omni-Directional)

GENERAL DESCRIPTION:

■ LCD Displays: 1.Frequency
                             2.Channel
                             3.Battery meter status
■ Recharging outlet for optional rechargeable battery and charger.
■ 2 × AA batteries can be used continually 18 hours
■ 7 color plastic covers for mic. antenna
■ S-600 Dynamic capsule
■ Balck color, rubber painting plastic

FEATURES:

UP-883H

■ Oscillation mode: PLL UHF SYNTHESIZED.
■ Carrier frequency band: UHF high band 470~900 MHz.
■ Frequency Response: 50Hz~15KHz (±3dB).
■ Frequency Stability: ±0.005% (-10??lt;/span>~50??lt;/span>).
■ T.H.D.: <0.8%.
■ Modulation mode: FM (F3E).
■ RF output power: 5~50mW. (Adustable 3 bands)
■ Dynamic: >100dB.
■ Tone frequency: 30~33KHz.
■ Current drain: 100mA.
■ Max. Deviation: ±35KHz Deviation.
■ Battery: AA type×2 pcs.
■ Optional: Nickel hydrogen Battery +battery charger.
■ Mic. capsule (Optional): S-600 Dynamic Capsule.
■ Dimensions: 277 mm (10.9).
■ Weight: Approx.0.2 kg. (0.44lb)

UP-8P (UHF 470~900MHz Band Bodypack )
FEATURES:

UP-8P

Selectable Clip/ Headset Mic.
■ LCD displays: Battery fuel gauge
                              Channel
                             Error message.
■ Carrier Frequency range: UHF 470 to 900 MHz
■ Frequency response: 50Hz~15kHz(+-3dB)
■ Frequcncy stability : ±0.005% (??lt;/span>~??lt;/span> )
■ T.H.D.: <0.8%
■ RF Output power: 30mW (Adjustable 3 bands)
■ Spurious emissions: <-55dBC
■ Max. Deviation: +- 35kHz
■ Max. Inupt level: 145dB SPL
■ Microphone Capsule: Condenser or Dynamic Capsule
                                         4 band choose: 1. Condenser
                                                                  2. Dynamic
                                                                  3. Electric instrument
                                                                   4. Ground
■ Battery : AA type × 2pcs
■ Dimensions : 66(W) × 103.5(L) × 23(H)
■ Weight : 0.08kg (Approx.)
■ Color: Black color, rubber painting plastic

UP-88P (UHF 470~900MHz Band Bodypack )

FEATURES:

UP-88P

Selectable Clip/ Headset Mic.
■ LCD displays: Battery fuel gauge
                         Channel
                        Error message.
■ Carrier Frequency range: UHF 470 to 900 MHz
■ Frequency response: 50Hz~15kHz(+-3dB)
■ Frequcncy stability : ±0.005% (-10??lt;/span>~-50??lt;/span> )
■ T.H.D.: <0.8%
■ RF Output power: 30mW (Adjustable 3 bands)
■ Spurious emissions: <-55dBC
■ Max. Deviation: +- 35kHz
■ Max. Inupt level: 145dB SPL
■ Microphone Capsule: Condenser or Dynamic Capsule
                            4 band choose: 1. Condenser
                                                  2. Dynamic
                                                  3. Electric instrument
                                                  4. Ground
■ Battery : AA type × 2pcs
■ Dimensions : 66(W) × 103.5(L) × 23(H)
■ Weight : 0.08kg (Approx.)
■ Color: Black color, rubber painting plastic
