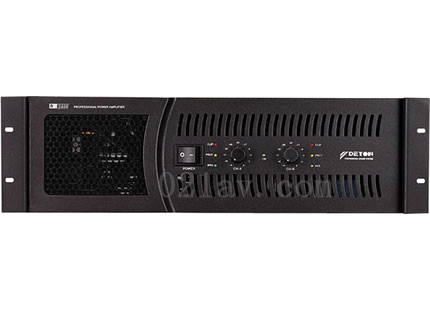

PROFESSINAL POWER AMPLIFIER: DN SERIES
■Rated power :2x300w RMS / 8ohm
:2x550w RMS / 4ohm
■Frequency response :10Hz ~ 20kHz +/-1.5dB
■Power consumption half power 8ohm: 600w
■Power supply AC :115V / 230V 50~60Hz
■Dimension (WxDxH) :482x380x132mm
| Model |
DN2400 |
| Rated power |
2x300w RMS / 8ohm |
|
2x550w RMS / 4ohm | |
|
Mono bridge 1000w | |
|
RMS 8ohm | |
|
Mono parallel 1000w | |
|
RMS/2 ohm | |
| THD |
<0.05% |
| Frequency response |
10Hz ~ 20kHz +/-1.5dB |
| Damping factor |
>200/8 OHM |
| Slew rate |
>30V/US |
| Signal/Noise ratio |
>105dB |
| Input sensitivity & Impedance |
+3dB (1.4V) 20k ohm |
| LED indicators |
Power(green), protect(yellow), clip(red), bridge(green), parallel(green) |
| Power consumption half power 8ohm |
600w
|
| Power supply |
AC 115V / 230V 50~60Hz |
| Dimension (WxDxH) |
482x380x132mm |
