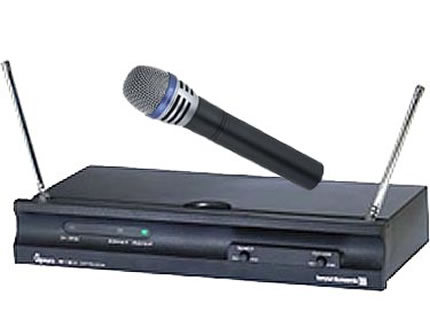

SDM 169 V Technical Specifications
■Operating principle: Handheld Transmitter
■Polar pattern: hypercardioid
■Transducer type: dynamic
■Frequency: 1 frequency between 174 - 236 MHz
■RF output power: max. 20 mW (output power)
■Nominal deviation: 30 kHz, max. 50 kHz
■Frequency response: 50 - 15,000 Hz
■Noise reduction: LN compander
■S/N ratio: at RF-level 70 dBm: > 100 dB (A)
■Sensitivity: fixed
■Max. SPL: 130 dB
■Antenna connection: integrated in housing
■Power supply: 2 x 1.5 V alkaline batteries (AAA type micro)
■Current consumption: 130 mA (UHF), 100 mA (VHF)
■Operating time: > 8 hrs. with alkaline batteries
NE 100 V Technical Specifications
■Operating principle: Wireless Diversity Receiver
■Frequency: 1 frequency between 174 - 236 MHz
■Nominal deviation: 30 kHz, max. 50 kHz
■Frequency response: 50 - 15,000 Hz
■T.H.D.: < 1 % (30 kHz) (transmitter and receiver)
■Noise reduction: LN compander
■S/N ratio: at RF-level 70 dBm: > 100 dB (A) ;
at RF-level 85 dBm: > 90 dB (A) ;
■RF-bandwidth: 200 kHz
■Audio output: 3-pin XLR, balanced
■Power supply: external power supply unit (11 - 15 V, 200 mA) DC/AC
■Dimensions (H x W x D): 226 x 39 x 115 mm
■Weight: 650 g
